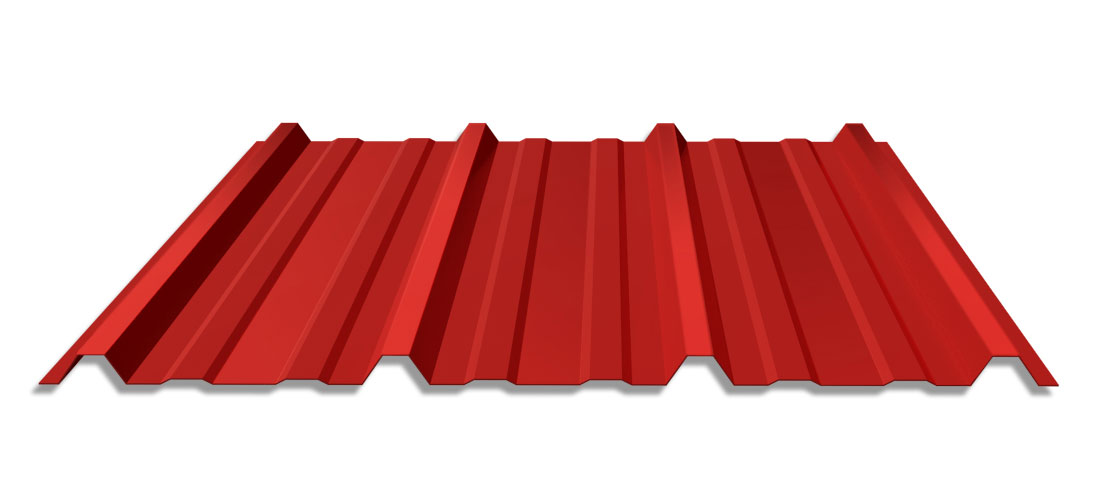

PRODUCT DESCRIPTION – PBR Panels

PBR Panels are commonly used on wall and roof applications. They are structural panels with exposed fasteners used in a wide variety of architectural, commercial, and industrial applications. Like PBU Panels, PBR Panels are commonly used in storage facilities, agricultural facilities, and even dealerships. When these metal panels are used on roofs it creates a standard appearance that is great for commercial and industrial pursuits. The minimum roof slope is 1/2 : 12. The Rib spacing and Height create a good valley for large amounts of water to flow out and off of the building. The 12″ spacing allows for ample space for a reinforced roof system or to serve as a the base for another roof system to be laid on top. PBR Panels are very common in Pre-Fabricated Metal Buildings as they are often used as the exterior (Endwall frame and Roof). Simple screws can be drilled though the PBR panel linking it to a purlin or surface like Plywood. Some architects have also used these panels in the interior of buildings as an aesthetic or decoration.

(ASC always recommends the advice of an engineer for all projects.)

Contact Us to order or for information 786-536-9160.

  • Coverage Width – 36”
  • Rib Spacing – 12” on center
    Rib Height – 1- ¼”
  • Minimum Sloe – ½:12
  • Panel Attachment – Exposed Fastening System
  • Gauge – 26 (Standard); 29,24,22 (Optional)
  • Finishes – Smooth (standard); Embossed (optional)
  • Coatings – Galvalume Plus Signature 200, Signature 300

GET A QUOTE




We offer a wide variety of colors for PBR Panels.
Burnished Slate
Rustic Red
Koko Brown
Cobalt Blue
Crimson Red
Charcoal Gray
Hawaiian Blue
Desert Sand
Saddle Tan
Light Stone
Polar White
Solar White
Fern Green
Ash Gray
Medium Bronze
Snow White
Slate Gray
Almond
Classic Green
Brownstone
Brite Red
Harbor Blue
Bone White
