5V Exposed Fastener Panel

5-V Panels are aesthetically pleasing metal panels with a classic design appearance. They are easy to install and make a great roof when installed on a solid roof deck with a waterproof membrane. 5-V Panels are typically used for aesthetic roofs on condos, rustic styled residential homes, gazebos, and poolside shade areas. They give the structure a regal and timeless look. 5-V Panels are also commonly used in island and coastal communities due to their strength and durability. These panels can be easily installed to structures and even plywood surfaces. Simply screw them to the structure and you’re done!

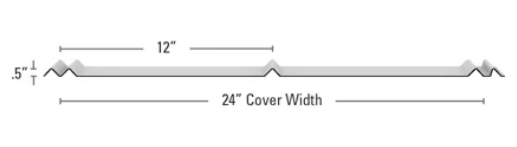

  • Coverage Width – 24”
  • Rib Spacing – 12” on center
  • Rib Height – 0.5”
  • Minimum Slope – 3:12
  • Panel Attachment  – Exposed Fastening System
  • Gauge – Standard 26 GA Galvalume; (29 GA Available Galvanized bare only)
  • Finishes – Smooth (standard)
  • Coatings – Kynar 500®(PVDF)
  • Available in Custom Lengths

We offer the 5-V Panels in variety of colors.
